- The Hydropore water intrusion porosimeter is specifically designed for analyzing the pore structure characteristics of hydrophobic materials.
- It can precisely measure parameters such as pore volume, porosity, pore size distribution, and pore volume distribution for both through-holes and blind holes.
- This instrument is suitable for analyzing the pore structure of polymer films, solids, and powder samples. Due to its reliance on water for analysis, it is considered the safest and most highprecision tool available.

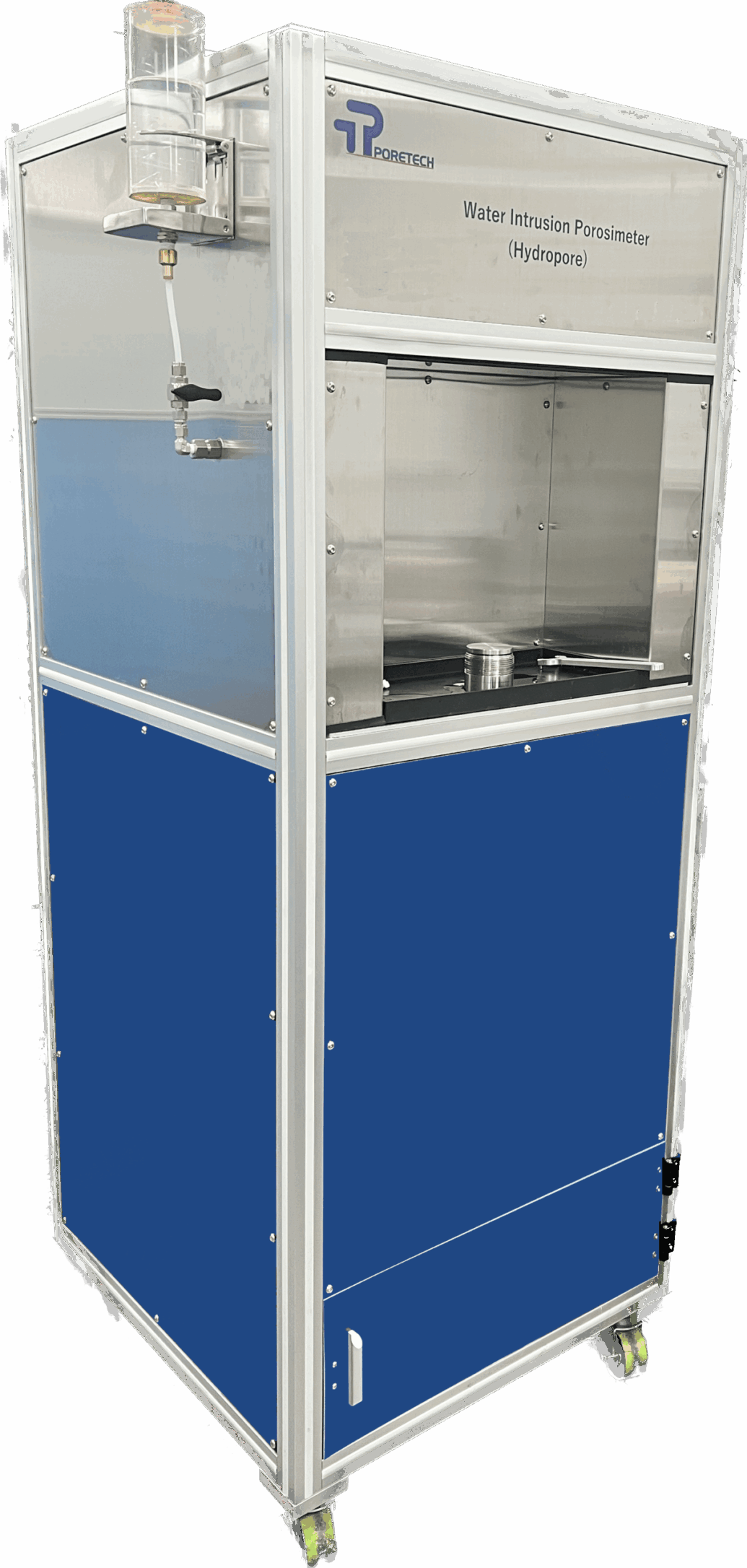

Hydropore Porosimeter
Model: Hydropore WMI-10K
- Mercury-Free Testing:
The testing process exclusively utilizes water, eliminating mercury hazards and the need for mercury waste recycling. - Precision Microsensor:
Equipped with a precision microsensor, the system accurately detects microvolume changes in micropores within the sample. - Reproducible Testing:
Samples can be repeatedly tested for reproducibility after drying, with no residual mercury concerns. - Cost-Effective and Easy Maintenance:
Utilizing only water as the testing fluid results in low testing costs. Additionally, the system is designed for easy maintenance, ensuring affordability and simplicity in upkeep.
Hydropore
| Test Method | Water Intrusion |
| Pressure type | 3000psi / 5000psi / 10000psi / 30000psi |
| Sample cell volume | 10cc (others request available) |
| Channel | Single chamber |
| Pore size range: | 400-0.002μm The actual depends on the model, please contact our staff. |
| Sample Geometry | Flat Sheets, Rods, Tubes, Hollow Fibers …. |
| Test fluid | Water (Other liquids can be used) |
| Pressure transducer | Accuracy: 0.2% (FS) ; Resolution: 1/20000 |
| Pressurized device | Build-in high pressure generator |
| Sample chamber | SUS material, Single chamber (Manual Chamber) |
| Operation | Automatic test mode and manual operate mode |
| Power | AC 110V or 240V, 50/60Hz |
